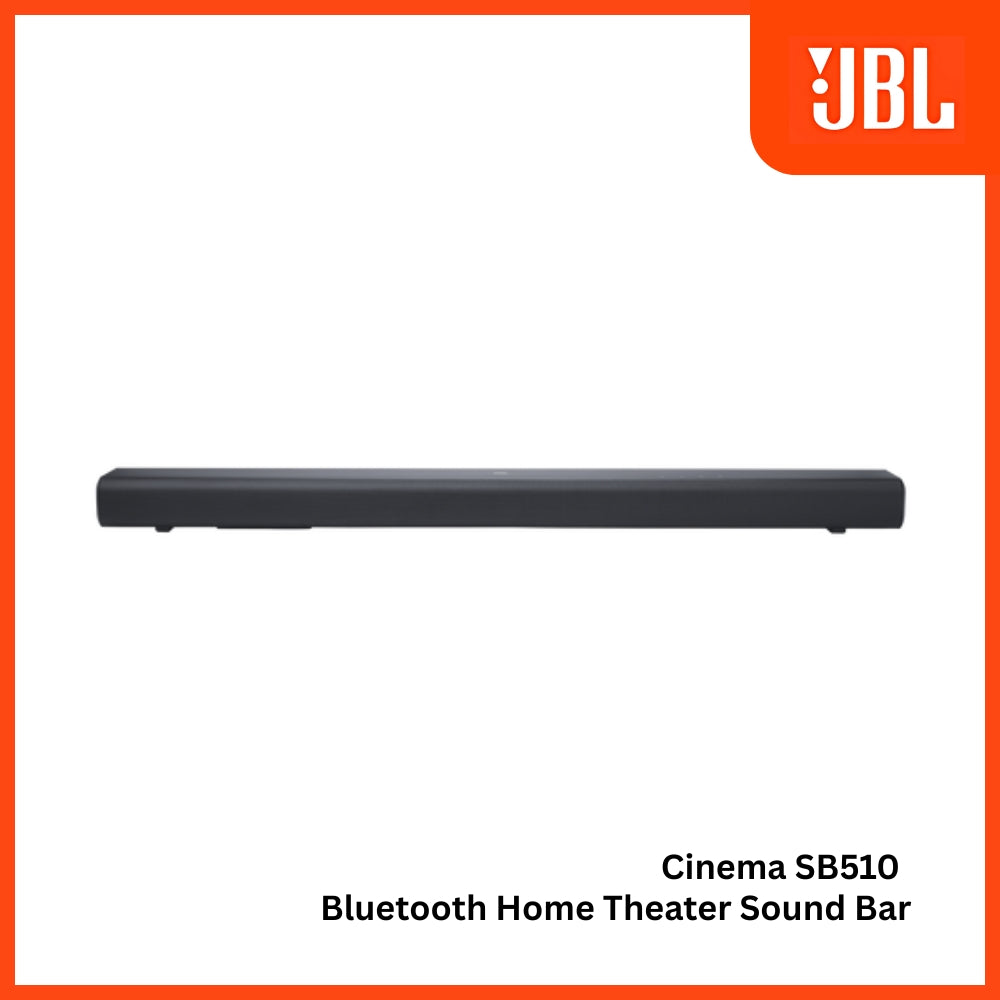

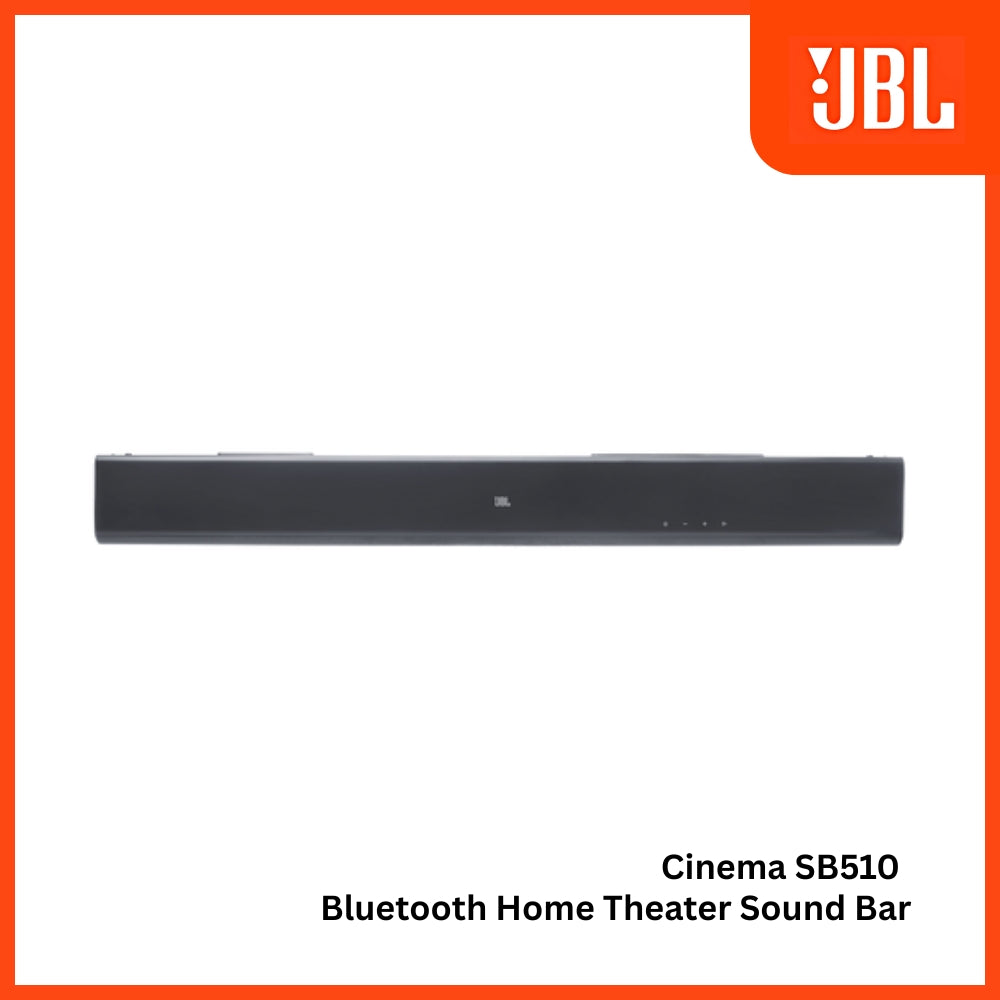

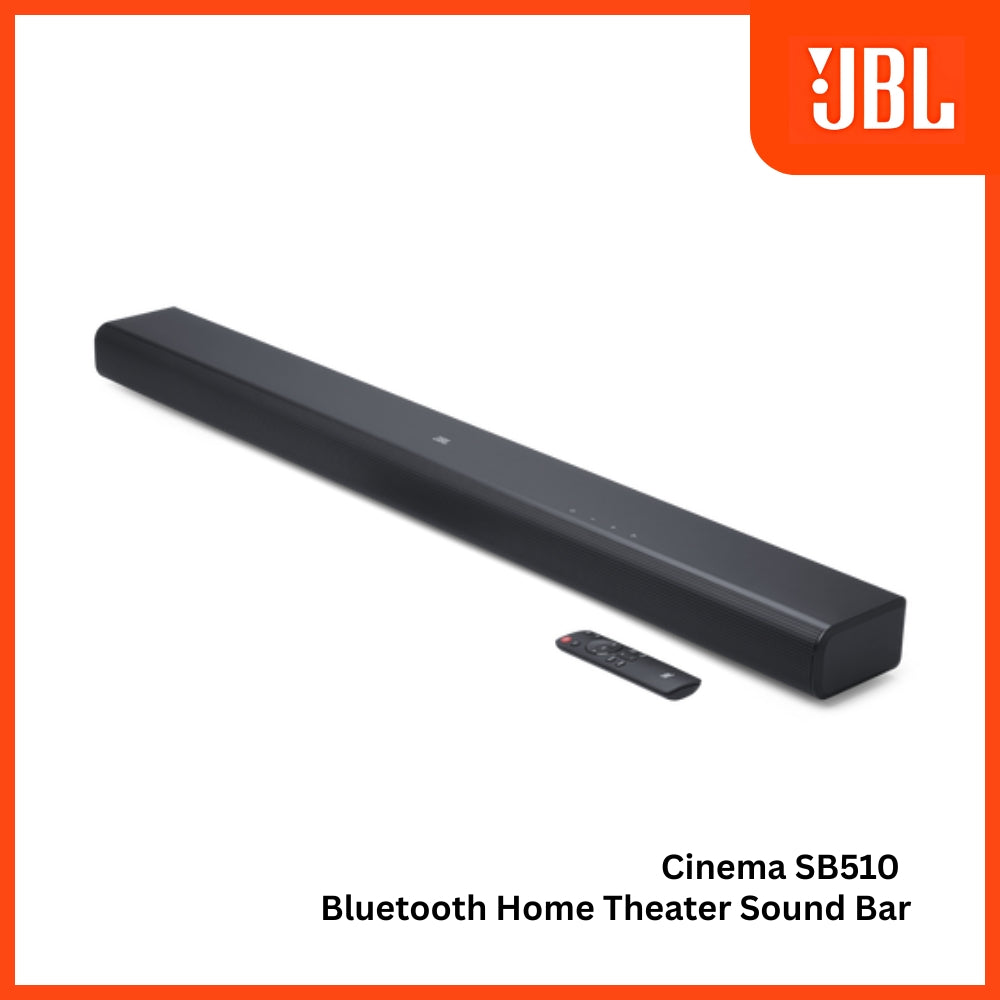

JBL - SB510 Wireless Bluetooth Soundbar

General Specifications

• Model: CINEMA SB510
• Sound system: 3.1 channel
• Power supply: 100 - 240V AC, ~ 50/60Hz
• Total speaker power output (Max @THD 1%): 200W
• Soundbar output power (Max @THD 1%): 150W
• Subwoofer output power (Max. @THD 1%): 50W
• Soundbar transducer: 3x (45 x 80) mm racetrack drivers
• Subwoofer transducer: 1x (70 x 88) mm, built-in subwoofer
• Standby power: < 0.5W
• Operating temperature: 0°C - 45 °C

Audio Specifications

• Frequency response: 55Hz-20kHz (-10dB)
• Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions/h4>

• Soundbar dimensions (W x H x D): 950 x 67 x 105 mm / 37.4’’ x 2.6’’ x 4.1’’
• Soundbar weight: 3.5kg / 7.7 lbs
• Packaging dimensions (W x H x D): 1112 x 116 x 164 mm / 43.8" x 4.6" x 6.5"
• Packaging Weight: 5.0kg / 11.0 lbs

Control and Connection Specifications

• USB port: Type A
• USB rating: 5V DC, 0.5A
• Supporting file formats: mp3
• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16 - 48 kHz
• Bluetooth version: 5.3
• Bluetooth profile: A2DP 1.3, AVRCP 1.6
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth Max. transmitting power: <10 dBm (EIRP)
• Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK

Video Specifications

• HDMI ARC (Audio Return Channel): 1
• HDMI HDCP version: 1.4

Warranty Period - 1 Year
